VividEdge VL4500 Series
3G/HD/SD SDI MPEG2 and AVC Encoder
Highlights
- Up to eight channels of MPEG-2 or h.264 AVC programs
- Two profiles per input
- ASI, IP, QAM and RFoG outputs
- EIA708 and EIA608 Closed Captions
- AFD with auto resize option
- SCTE35 Markers
- Broadcast delivery over public Internet with SRT protocol
- Down/Up-conversion option and deinterlacer
- Intuitive web based GUI
VividEdge VL4500 Series of products allows the MSO to replace the legacy analog audio and video fiber transmitters with cost effective HD capable multi channel encoder. That transport eliminates fiber receiver, encoder and groomer from the headend, thus way reducing rack space, power consumption and heat dissipation. The product allows the encoding and transporting over GigE multiple CableLabs compliant streams, providing a solution for most of the PEG and local insertion channel loading scenarios.
Closed Caption Support, AFD, Logo Overlay, PiP mode, Ad insertion points, EAS Static image insertion, VLAN support are some of the features that will place the unit right in the MSO’s video environment.

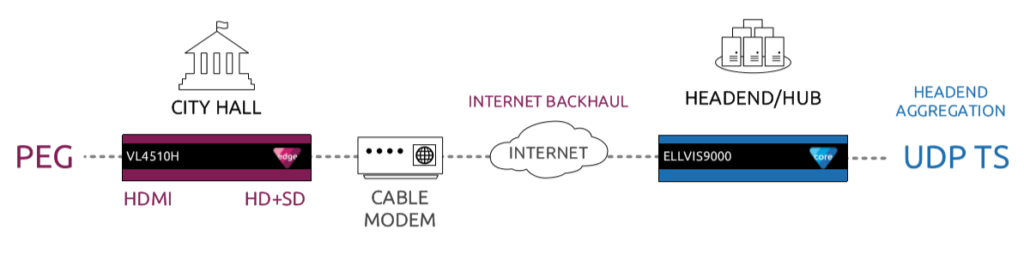

VL4500 Series SRT video transport protocol enables the delivery of high-quality and secure, low-latency video across the public Internet, reducing equipment and transport/service cost.
Specifications
Input
SMPTE 259M(SD-SDI)/292M(HD-SDI)/424M(3G), BNC, 75 Ohm
NTSC, BNC, 75 Ohm
10K UNBALANCED STEREO AUDIO, 6-PIN CONNECTOR
TS Output
ISO/IEC 13818 SPTS/MPTS MPEG TS, 1000BaseT
Public network/Internet SRT Streaming Protocol
DVB ASI Output up to 54M, BNC 75 ohm
QAM Output
QAM 64/256 Annex B, 54Mhz—1GHz, MER <40, 55dBmV
DWDM ITU (ch18 to ch64) Laser, 7mW, 11% OMI
Video Processing
Down-Conversion with Letter box, Anamorphic and center cut, AFD bypass, user input and auto resize
Resolution and framerate conversion
DPI Trigger Insertion via SCTE35 and SCTE104
Video and Audio
| MPEG-2 MP@ML | 1-15Mbps |
|---|---|
| MPEG-2 MP@HL | 2-24Mbps |
| h.264 AVC MP@L3.0 | 0.5-8Mbps |
| h.264 AVC MP@L4.2 | 2-24Mbps |
| MPEG-2 GOP | 10-60 FRAMES, IBBP |
| h.264 AVC GOP | 10-240 FRAMES, IBBBBP |
| RESOLUTIONS | 320x256p, 480x320p, 640x480p, 480p, 720p and 1080p |
| FRAMERATES | 24, 25, 29.97, 30, 59.94 and 60fps |
| CHROMA | 4:2:0 |
| AUDIO CODEC | Dolby Digital 2.0, MPEG Layer2, AAC |
| SAMPLING RATE | 48kHz |
| BITRATE | 93-384kbps |
Environmental and Power
| Power | 35W @ 90 to 240VAC (DC Power Brick) |
|---|---|
| Weight | 5lb |
| Operational Temp | 0° to 50° C |
| Storage Temp | -10° to 60° C |
| Dimensions | 1RU 17.0″ W x 9.0”D x 1.75″ H |
Ordering Information
| VL4510 | Insertion Encoder, 1 x SDI Input, ASI and GigE Outputs |
|---|---|
| VL4510C | Insertion Encoder, 1 x SDI/CVBS Input, ASI and GigE Outputs |
| VL4522 | Insertion Encoder, 2 x SDI Inputs, ASI and GigE Outputs |
| VL4521 | Insertion Encoder, 1 x HD-SDI + 4 x SD-SDI Inputs, ASI and GigE Outputs |
| VL4528 | Insertion Encoder, 8 x SD-SDI Input, ASI and GigE Outputs |
Add “Q” at the end of the part number for QAM output option.
Add “QFX” at the end of the part number for RFoG output option.
